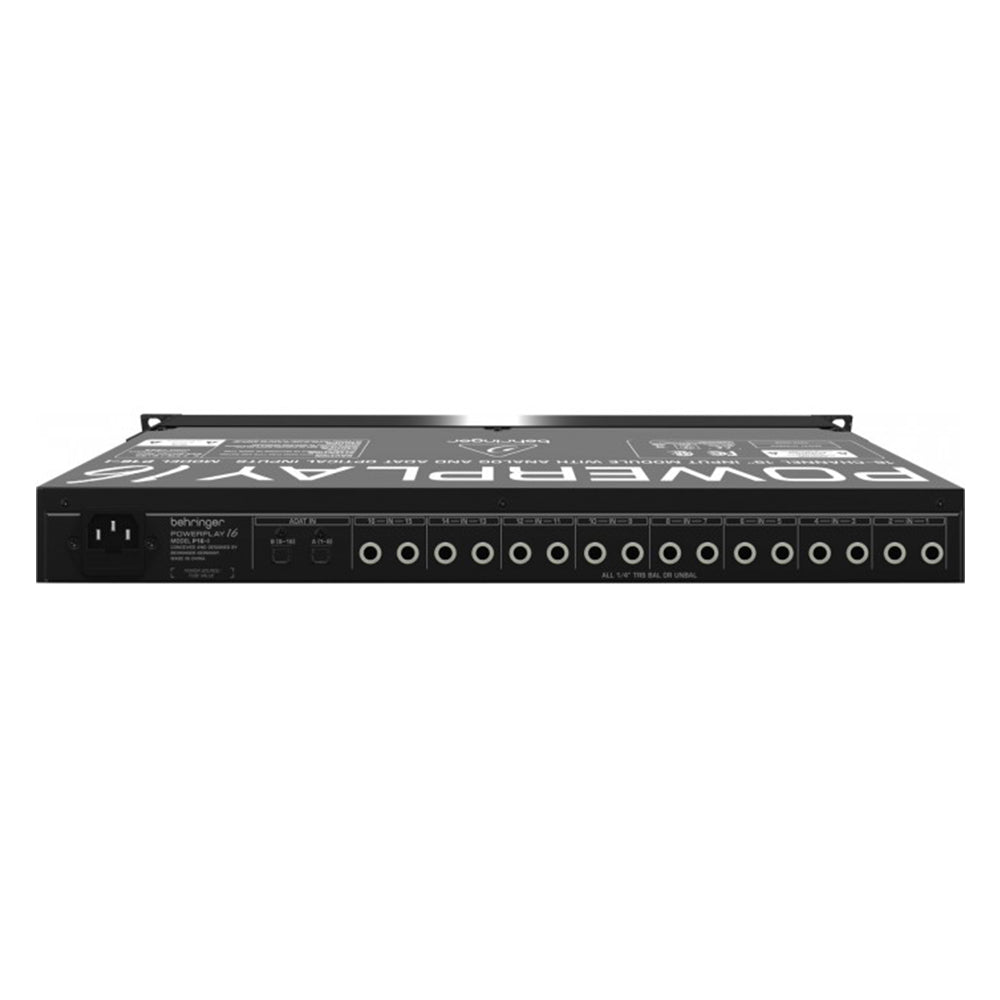

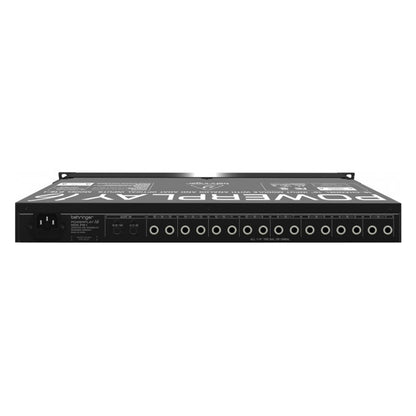

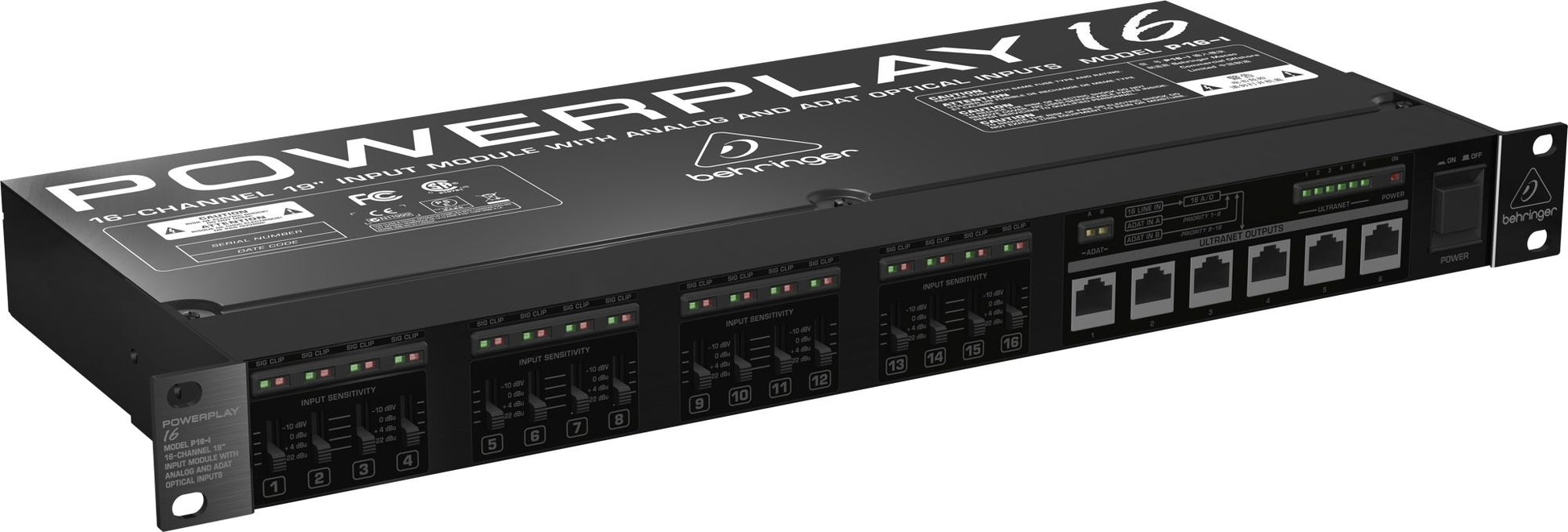

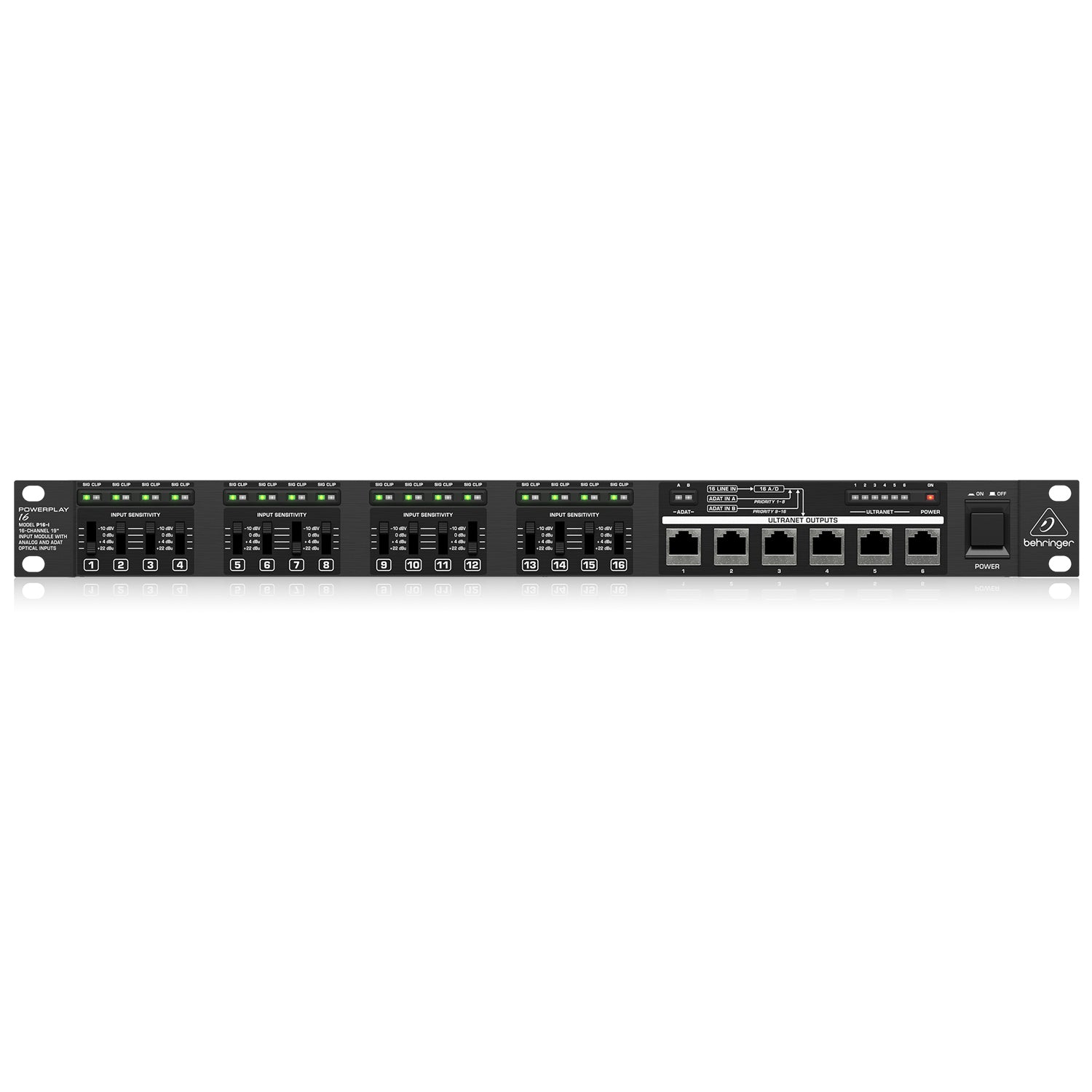

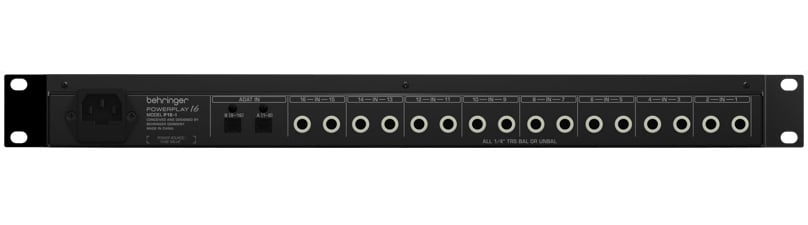

Behringer Powerplay P16-I is a versatile 16-channel input module designed to integrate seamlessly with the Powerplay P16 personal monitoring system. It converts analog and digital audio sources into 24-bit digital audio, delivering them via Ultranet to P16-M personal mixers.
Product Details
Brand: Behringer
Model: Powerplay P16-I
SKU: BEH-BEPM16I
Analog Inputs: 16 x 1/4" TRS balanced line-level
Digital Inputs: 2 x ADAT optical (8 channels each)
Ultranet Outputs: 6 x RJ45
A/D Conversion: 24-bit, 48 kHz
Gain Control: 4-position switch per channel (-10 dBV, 0 dBu, +4 dBu, +22 dBu)
Latency: Less than 1 millisecond
Power Supply: Internal autorange (100–240 V~)
Dimensions: 1U rackmount
Weight: 2.08 kg (4.6 lbs)
Features
Converts 16 analog inputs into 24-bit digital audio for Ultranet transmission
2 x 8-channel ADAT optical inputs with auto-detect and priority select
State-of-the-art 24-bit A/D converters for premium audio quality
4-position gain switches per channel pair for optimal input level matching
Signal Present and Clip LEDs per channel plus ADAT status LEDs
Standard CAT5e connection delivers power and signals for up to 6 personal mixers
Extremely rugged construction ensures long life even under demanding conditions
