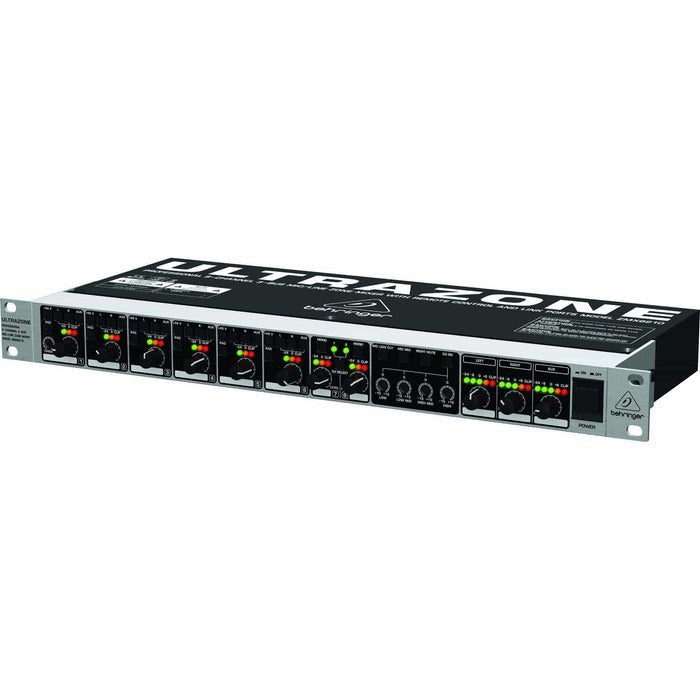

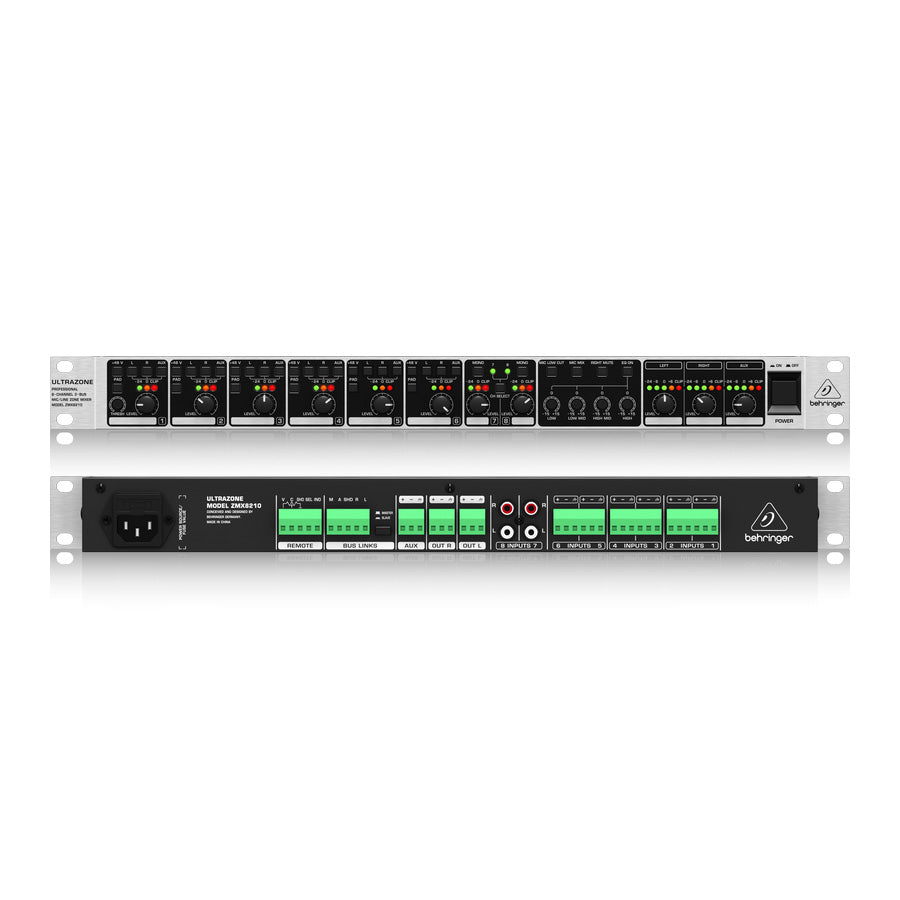

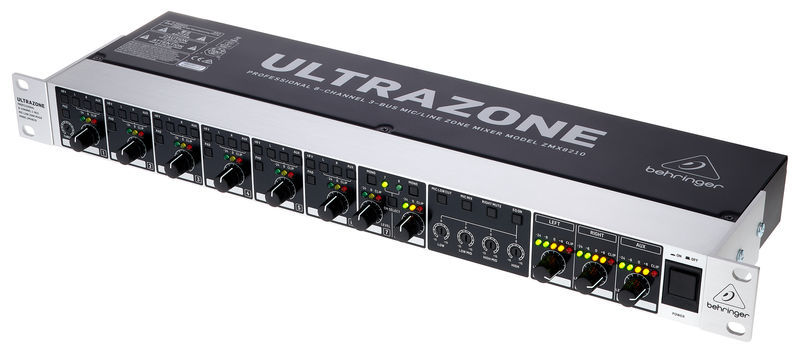

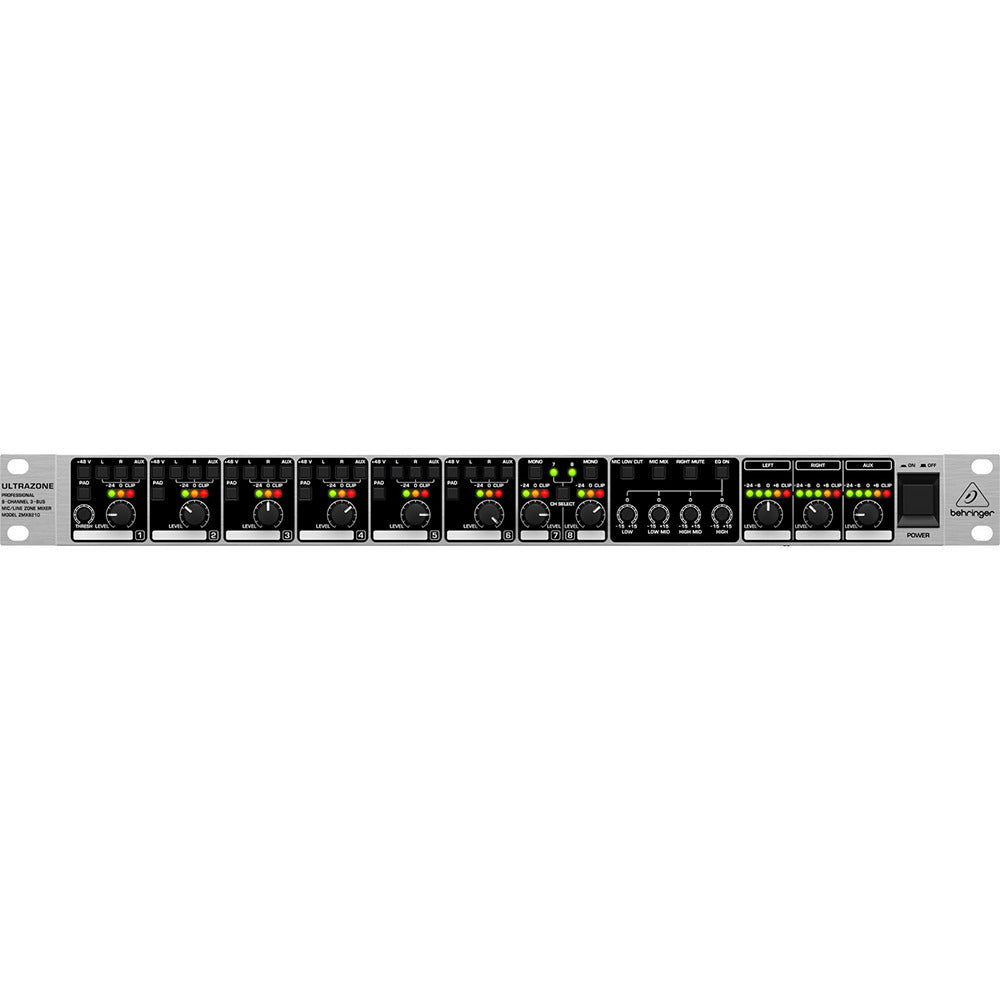

Behringer ULTRAZONE ZMX8210 V2 is a professional 8-channel, 3-bus rackmountable zone mixer designed for commercial sound systems and fixed installations. Ideal for venues like restaurants, offices, gyms, and houses of worship, it allows distribution of music and announcements to up to three separate zones.
Key Features
8 Input Channels: 6 ultra-low noise Mic/Line inputs with Gain control, -20 dB pad, Level/Clip indicators, +48 V phantom power, and bus-assign switches; 2 selectable high-headroom stereo inputs with mono/stereo switch.
3 Assignable Outputs: Left, Right, and Aux outputs with individual controls and 5-segment LED meters.
Ducking Function: Channel 1 provides variable threshold to enable automatic bus mute for announcements, ensuring clear communication.
4-Band Master EQ: Global equalizer with low-cut filter for fine-tuning sound and controlling feedback.
Remote Control Ports: Allows installation of remote volume controls in different zones for added flexibility.
Link Ports: Connect two ZMX8210 units for a total of 16 input channels.
Rackmountable: 1U rackmount design for easy integration into existing setups.
Specifications
Frequency Response: 20 Hz – 22 kHz, ±0.5 dB
THD: < 0.05%
Power Supply: Auto-ranging, 100–240 V AC, 50/60 Hz
Power Consumption: 15 W
Dimensions (H x W x D): 44 mm x 483 mm x 153 mm (1.7" x 19" x 6")
