4 Pin Female Speakon Inline

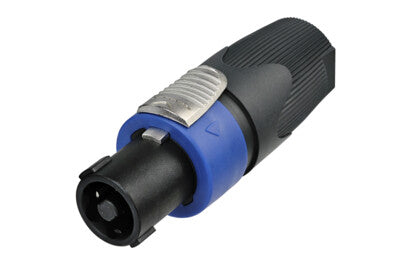

Neutrik NL4FX 4‑Pole Female speakON Inline Connector is the industry-standard solution for professional speaker cable assembly. It provides a secure, lockable connection for unbalanced high-current audio.

Built with a chuck-type strain relief and screw/solder terminals, this connector securely fits cable diameters from 7 mm to 14.5 mm. The Quick-Lock latch ensures easy yet reliable mating with chassis connectors.

Features

• 4‑pole (2+/2−) female speakON inline cable connector
• Cable outer diameter range: 7 mm–14.5 mm
• Rated current: 40 A RMS continuous, 50 A signal (50% duty cycle)
• Cable anchoring via Neutrik chuck for >220 N pull-out force
• Screw-type or solder termination options
• Quick-Lock latch, durable metal housing
• Contact resistance < 2 mΩ after lifetime use
• Dielectric strength 4 kV DC; insulation resistance > 1 GΩ
• Temperature range –30 °C to +80 °C; UL94 flame rating compliant
